Name: Outdoor LED Screen Solar Electronic Signs Double Sided Billboard Steel Structure External Outdoor Led Digital Signage Display Screens
Brand: Conwin Optoelectronic Co., Ltd.
Price: 420.00 USD
Availability: InStock

Outdoor LED Screen Solar Electronic Signs Double Sided Billboard Steel Structure External Outdoor Led Digital Signage Display Screens

اطلاعات پایه

محل منبع:	چین
نام تجاری:	CONWIN
گواهی:	CE,ROHS

مقدار حداقل تعداد سفارش:	1 متر مربع

اکنون تماس بگیرید

پیکسل:	8 میلی متر	ضمانت:	3 سال
نگهدار:	سرویس جلو	بهترین فاصله دید:	1-10 متر
ضخامت:	80 میلی متر	روش نگهداری:	جلو
حالت بسته:	SMD2121	نسبت:	16: 9
برجسته کردن:	outdoor LED digital signage display,double sided LED billboard screen,solar powered outdoor LED display , double sided LED billboard screen , solar powered outdoor LED display

Product Paramenters

Pixel Pitch (mm)	6.67	8	10
Pixel Configuration	SMD2727	SMD3535	SMD3535
Resolution(dots)	72*48	60*40	48*32

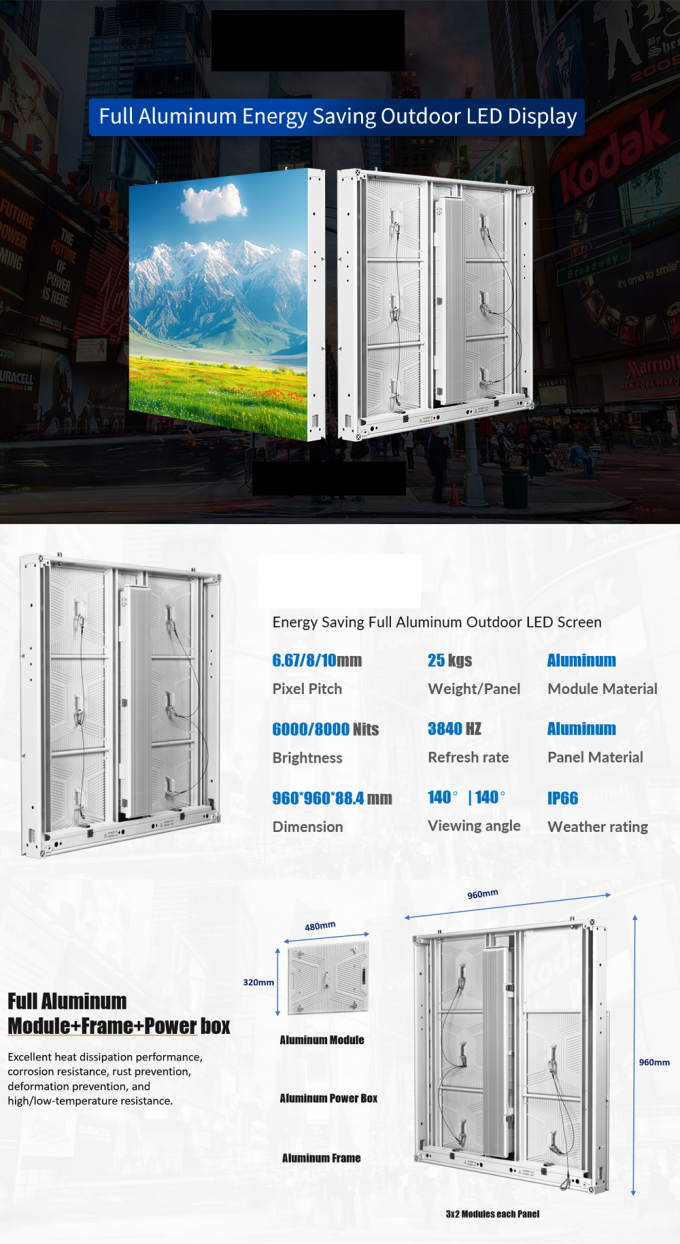

Size (mm)	480*320	480*320	480*320
Size(mm)	96096082.6	96096082.6	96096082.6

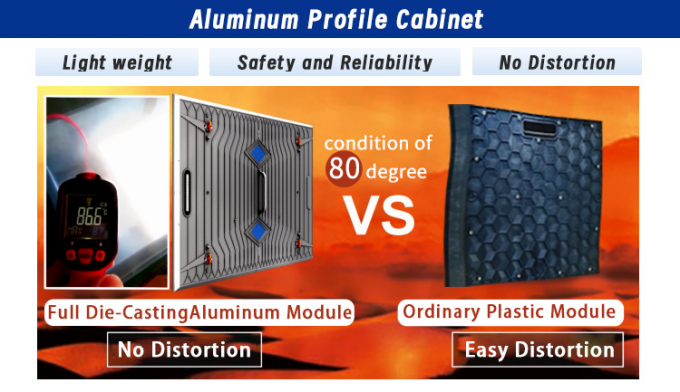

Material	Aluminum	Aluminum	Aluminum
Weight(kgs/Panel)	27	26	25
Resolution(dots)	144*144	120*120	96*96
Pixel Density(dots/㎡)	22500	15625	10000
Brightness(nits)	5500(8000nits gold wire optional)	5500(8000nits gold wire optional)	5500(8000nits gold wire optional)

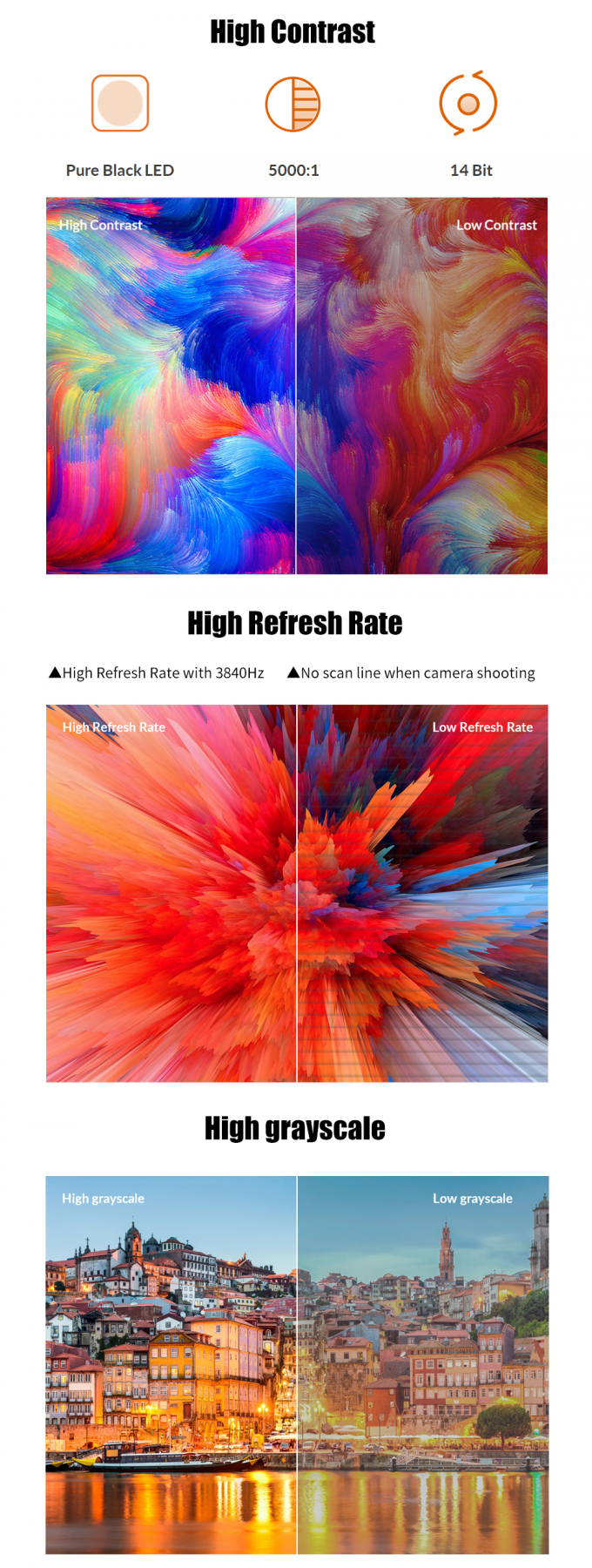

Grey(Bit)	14	14	14
Refresh Rate(Hz)	3840	3840	3840
Color temperature(K)	5500~9500	5500~9500	5500~9500
Scanning	1/5	1/3	1/2
Viewing Angle(H/V)	140°/140°	140°/140°	140°/140°
Max Power(W/㎡)	640	640	640
Avg Power (W/㎡)	190	190	190
AC Input Voltage	AC100--240V±10%/50~60Hz	AC100--240V±10%/50~60Hz	AC100--240V±10%/50~60Hz
Storage TEMP(℃)	-40~60	-40~60	-40~60
Working TEMP (℃)	-30~50	-30~50	-30~50
Storage Humidity (RH)	10%~60% No condensation	10%~60% without condensation	10%~60% without condensation
Working Humidity(RH)	10%~60% No condensation	10%~60% without condensation	10%~60% without condensation
Protection(Front/Back)	IP66	IP66	IP66

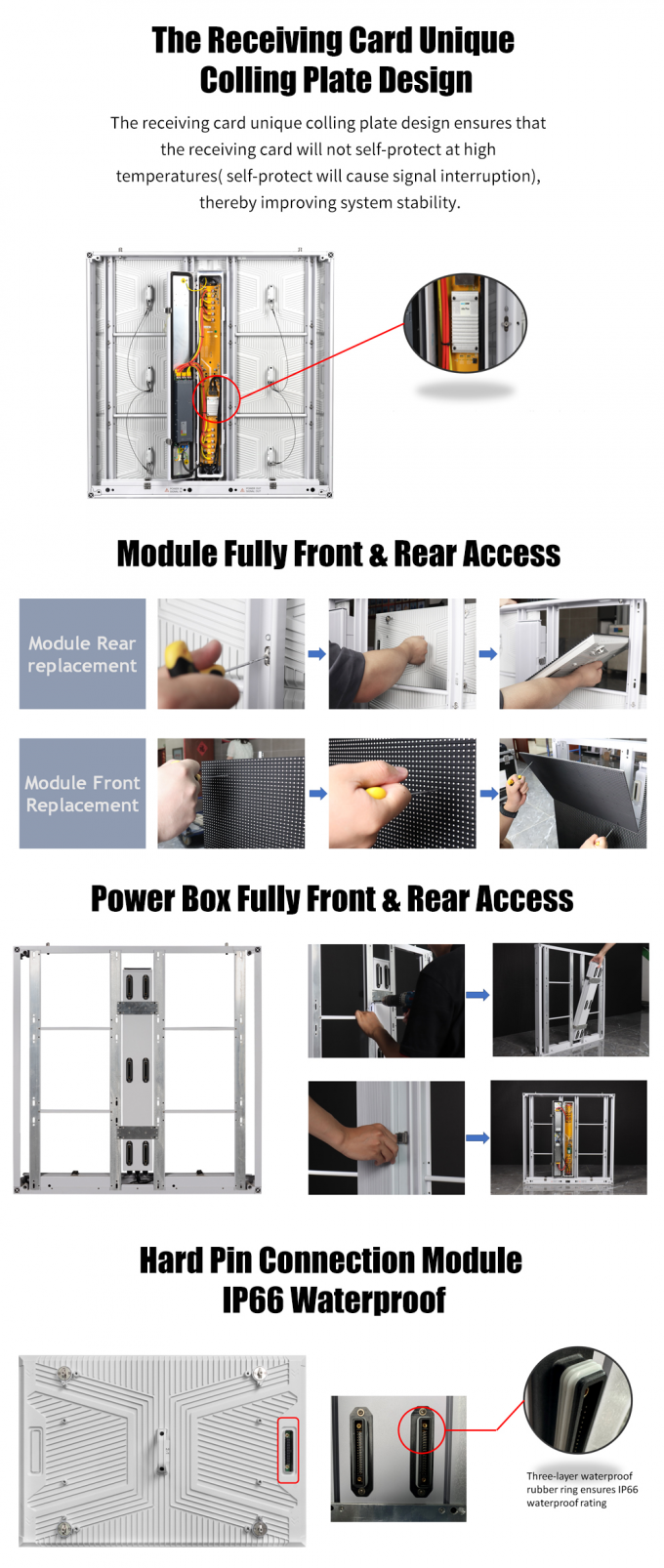

Maintenance Types	Front&Rear Maintenance	Front&Rear Maintenance	Front&Rear Maintenance
Life Span(hrs)	≧100000	≧100000	≧100000
